CAT D6 Track Assemblies Crated for Flatbed Transport
A full set of dozer track assemblies individually crated, labeled, and palletized, then staged on a flatbed trailer for pickup.
Dozer track assemblies (CAT D6, Type 2)
Flatbed Trailer
Export Packing & Crating
Customer Site, U.S.
Project Overview
This project covered export crating for a full set of Caterpillar D6 track assemblies, picked up directly from the customer's site. Each assembly was built into its own wood crate sized and rated for the part, labeled for handling and documentation, then palletized and staged on a flatbed trailer for pickup and onward transport.
Project Snapshot
- Crated components
- Full set of CAT D6 TA Type 2 track assemblies, individually crated
- Handling objective
- Protect and label each assembly for export ahead of pickup
- Next stage
- Flatbed pickup and transport to the outbound carrier
- Output
- Fully crated, labeled, and palletized assembly set
What Was Done
- Reviewed the assembly set and confirmed crate dimensions and weight rating for each unit — 920 lbs per crate.
- Built individual wood crates for each track assembly, including a removable panel side for inspection access.

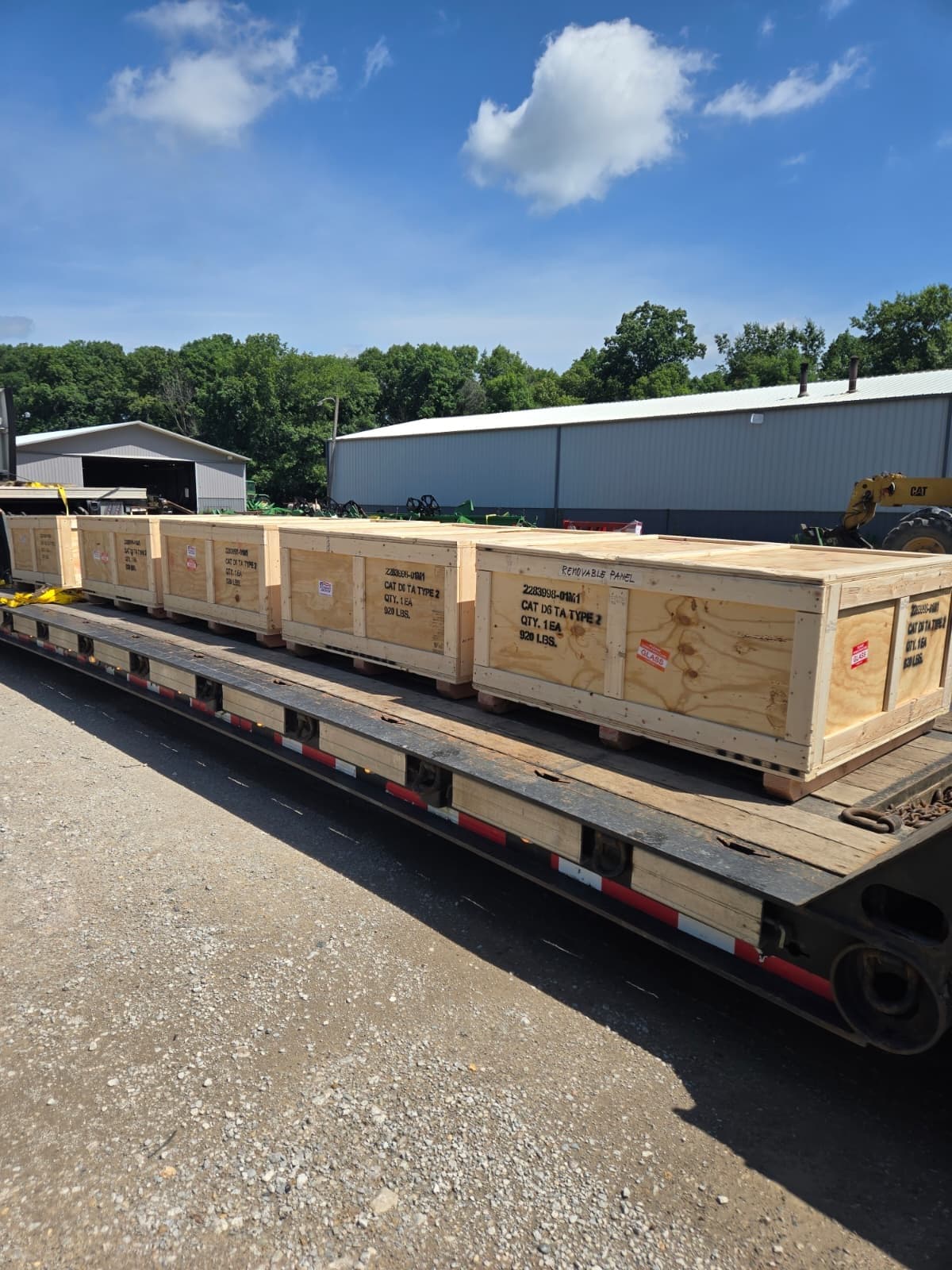

- Labeled every crate with part number, quantity, and weight for handling and documentation (marked “CAT D6 TA TYPE 2 · QTY. 1 EA · 920 LBS”).
- Palletized each crated assembly for forklift handling and stable stacking on the trailer.

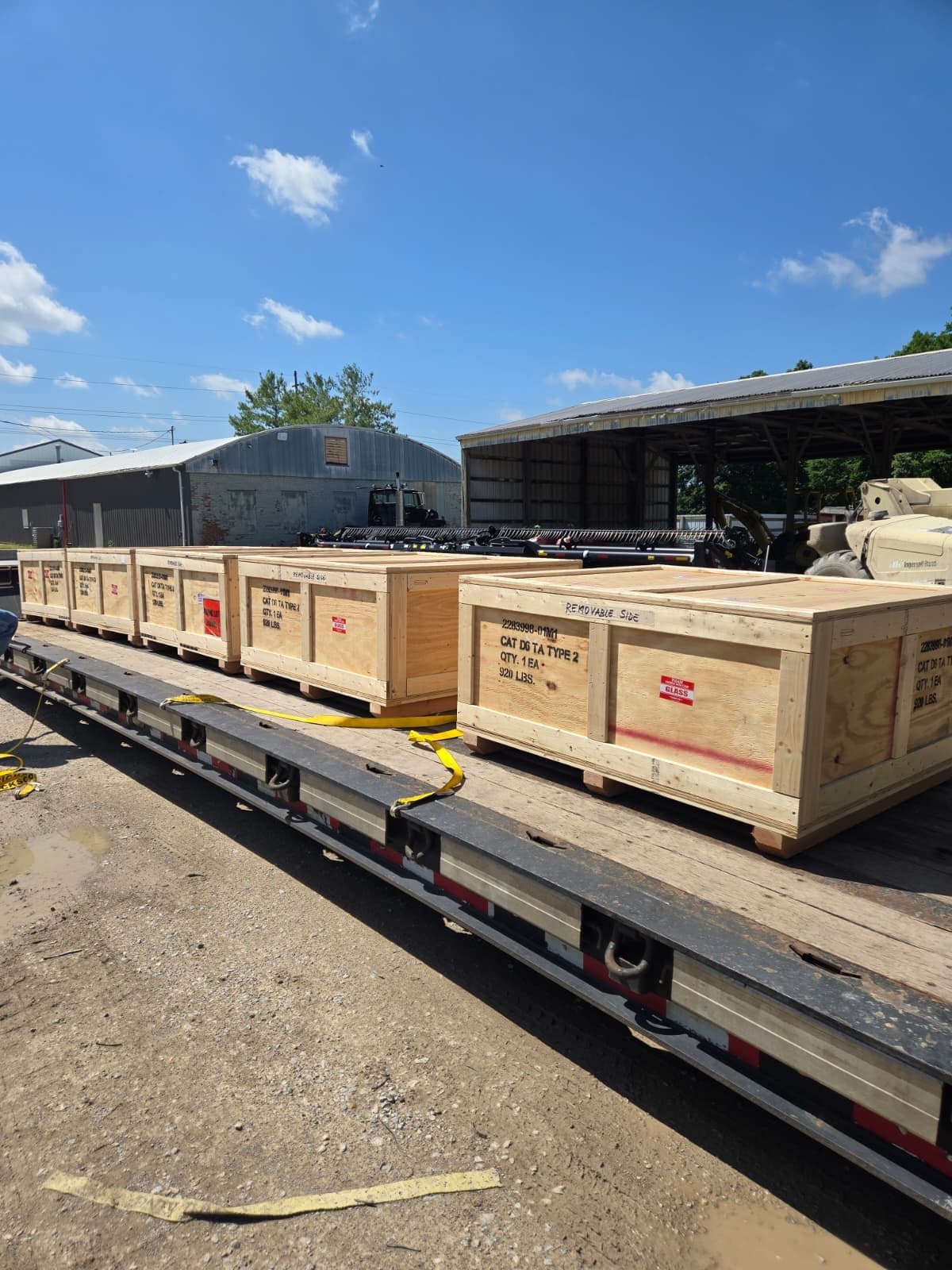

- Loaded and secured the full set on a flatbed trailer, sequenced for balanced transport.
Project Workflow
Initial review
Assembly set, dimensions, and weight confirmed against crate specifications.
Crate build
Individual wood crates built and fitted to each track assembly.
Labeling & palletizing
Crates labeled with part number, quantity, and weight, then palletized.
Flatbed load-out
Full set sequenced, loaded, and secured on the flatbed trailer.
